38mm Downhole Video Tool

KATEYE™ Downhole Video Tool runs with Surface Read Out (SRO) mode by E-line or Memory Mode by Slickline or Drilling Pipe. It is useful in Oil & Gas well industry, water well industry, as well as in geothermal and gas storage bank inspection.

By updated high-temp lens modules, the tool provides high definition images/videos which cover the entire downhole casing inner wall from 2-1/2” up to 17” casing/tubing. The video quality has been guaranteed by unique illumination and lens design.

KATEYE ™ Downhole Video Tools are compacted designed which is fast transportable by air transportation or hand carry by engineers.

38mm Downhole Video ToolKATEYE™ Downhole Video Tools-38mm.pdf

Features

Bi-directional digital telemetry communication system gives full control over video functions and ensures maximum flexibility. The intensity of the LED lights can be controlled from surface to achieve the best illumination condition.

The KATEYE ™ Downhole Video has dedicated lens which has a wide range of depth of field. The tool will provide you with a clear picture of casing wall.

The KATEYE ™ Downhole Video has equipped one of the world fastest telemetry modules, and make sure the picture has the best quality and refreshing rate compare with competitors.

Applications

  • Imaging dropped objects and wellbore fish

  • Mechanical inspection of wellbore hardware

  • Inspection and monitoring of corrosion and erosion

  • Detecting water/gas/oil entry

  • Perforation checking

  • Coal bed methane wells

  • Open hole imaging

Technical Specifications

Diameter
38mm (1-1/2”)
Pressure rating
1,5000 psi
Max Temperature
150℃(302℉)
Camera
Full Color
Connection
1-3/16 12UNF (GO Type)
View of angle
Down-view
Transmission rate

Realtime rate: >1 frame/s mono-cable

Memory rate:  > 2 frame/s

Memory capacity
4 GB
Battery
10 hours battery working life time
Casing/tubing size
Up to 17”
Well fluid
Water/Gas/Oil well/sour service capability
Cable
7/32”, 5/16” mono-conductor cable
Logging mode
Surface Read Out or Memory Mode

Downview Images

38mm Downhole Video Tool

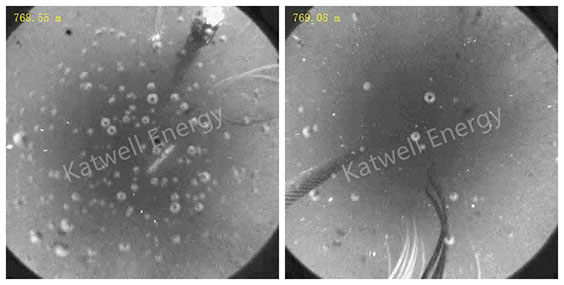

Casing Damage
Casing Damage

38mm Downhole Video Tool

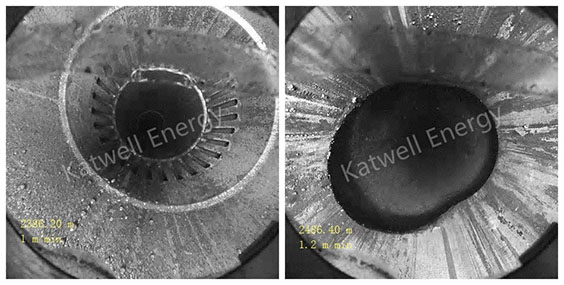

Sliding Sleeve
Sliding Sleeve

38mm Downhole Video Tool

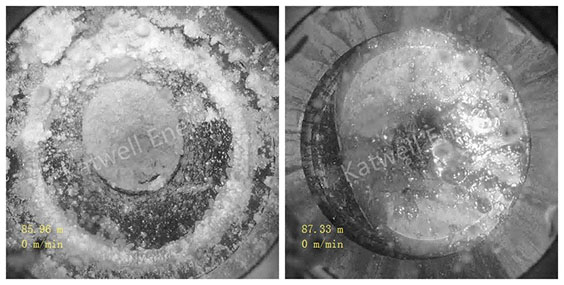

Ice on Valve
Ice on Valve

38mm Downhole Video Tool

Fish for Damaged Cable
Fish for Damaged Cable
